Laser Safety Glasses 305 Dielectric Coated Diode Nd:YAG CO2 (800-10,600nm)

Roll over image to zoom in Click on image to zoom

Laser Safety Glasses 305 Dielectric Coated Diode Nd:YAG CO2 (800-10,600nm)

SKU: 100-35-305

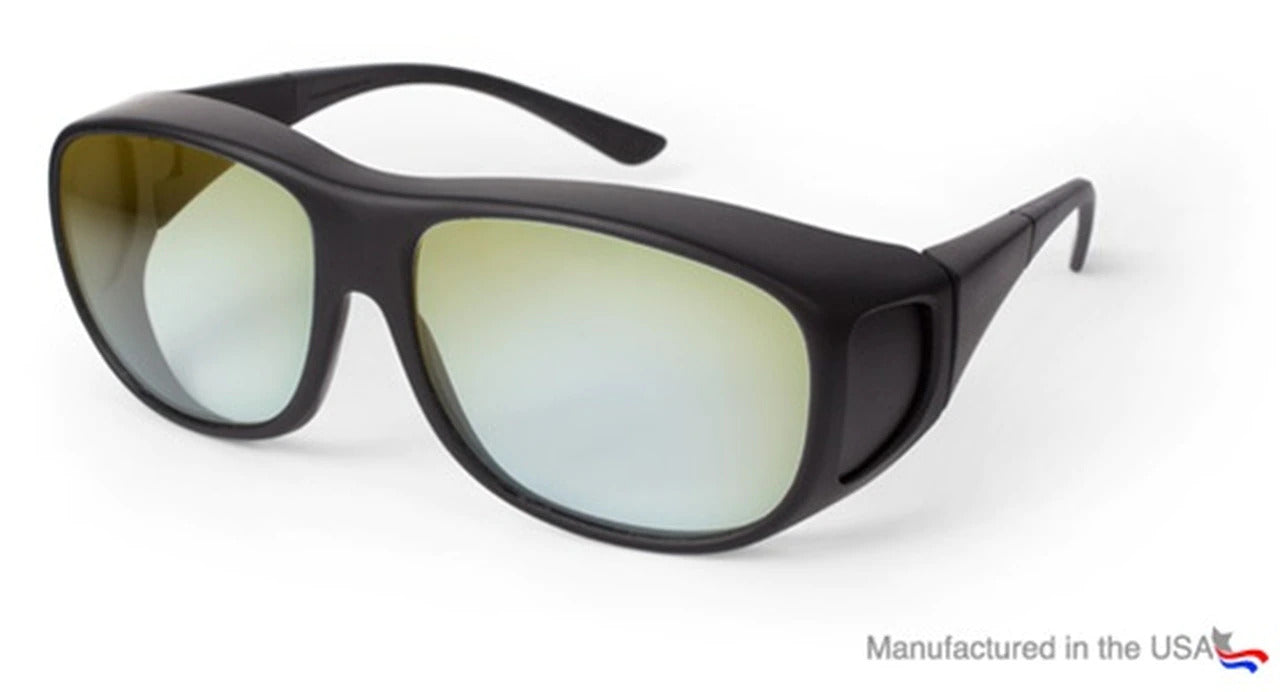

Frame: Spectacle - Frame 35

Variant

Price:

$499.00

Quantity:

Optical Density and Frame Videos

Optical Density

OD 7+ @ 800-1600 nm
OD 5+ @ 1600-2400 nm
OD 4+ @ 2400-2900 nm
OD 5+ @ 2900-10600 nm

Video on How to Read Optical Density Notation

Article on Optical Density

Visible Light Transmission

65%

Video on Visible Light Transmission

Article on Visible Light Transmission

Material

Dielectric Coated

Frequently Asked Eyewear Questions

View questions about eyewear in our Knowledge Base here.

305 laser safety glasses was primarily developed for protection from laser wavelengths 800-10,600 nm. This laser eyewear may provide protection from other laser wavelengths not listed. Please see Technical Specs for additional information about the frame and the filter or contact us. Filter specifications are permanently engraved. All glasses and goggles come with a complimentary case, microfiber cleaning cloth, and head strap.

Common Laser Applications

CO2,
Nd:YAG - 1064nm,
Eurbium YAG - 2780 nm, 2940 nm,
1319 nm,
1540 nm,
Holmium YAG - 2100 nm,
Telecom Lasers
General Region of Laser Protection

Infrared (IR)

LSOs (Laser Safety Officer) need to consider working environments, viewing conditions and beam delivery systems when making assessments and determining the correct laser glasses , goggles, barriers, or windows to protect against potentially hazardous laser radiation. Do not operate lasers without correct protective equipment and training. All laser safety glasses and goggles are made for indirect viewing only.

ANSI Z136.1

All our laser glasses meet or exceed the United Stated industry standard ANSI Z136.1, the requirements for use with the appropriate laser systems. For more information on ANSI, see here.

More about ANSI Z136.1 and EN207

Optical Density and Frame Videos

Superior High Quality Laser Protection

Expect excellent service and certifications sent on each pair of specific lenses to the end user client. You cannot get a second chance with high intensity lasers and your eyes. I absolutely trust this firms product, their certifications and their excellent service.

Laser Safety Glasses 120 Polycarbonate UV IR (190-375nm, 820-1720nm)

safety glasses

I just got my laser up and running and I'm not blind so all is OK so far. I just couldn't trust the unmarked glasses that came with the fiber laser.

Laser Safety Glasses 110 Polycarbonate KTP Argon (532nm)

Would love for the goggles to be labeled on the frame for the type of laser it is for. I have terrible hand writing.

Our eyewear often cover multiple ranges of wavelengths and could then offer protection for multiple lasers. Even one range of wavelengths covers multiple lasers - we therefore do not state commonly use lasers on the frame.

We state the optical density ranges per ANSI standards.
