Technical Specifications
Maximum Irradiance:
Our laser window coverings are tested to withstand 200W/cm² or 300W/cm² with a 5mm beam size for 100 seconds. Our product is intended for diffused laser energy containment. When a laser beam interacts with typical surfaces, the energy always scatters and spreads out. Our materials are engineered to effectively contain this energy, providing reliable protection in real-world environments.
In most applications, the energy you need to protect against is much lower than the laser’s full power, as the energy is diffused or scattered rather than directly reflected. Our window coverings provide effective protection for typical laser safety applications, even with varying beam directions.
To visualize how laser barriers and curtains contain diffused energy, refer to the image below:
Laser Safety Containment Image
Visual Explanation (Rapid Energy Diffusion):
This illustration is provided purely to help visualize the general concept of how irradiance typically decreases as laser energy spreads out over distance.
Frequently Asked Window and Curtain Questions

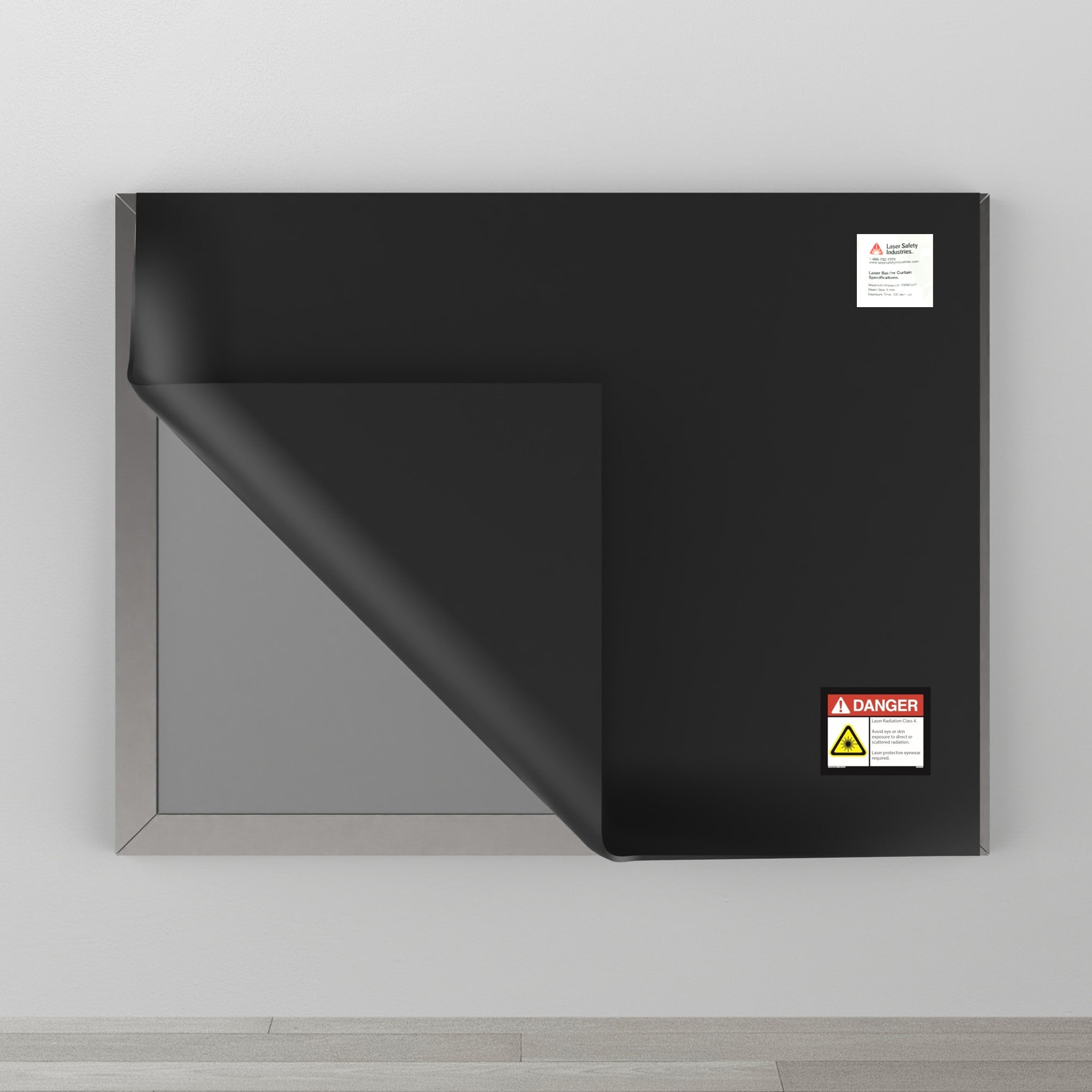

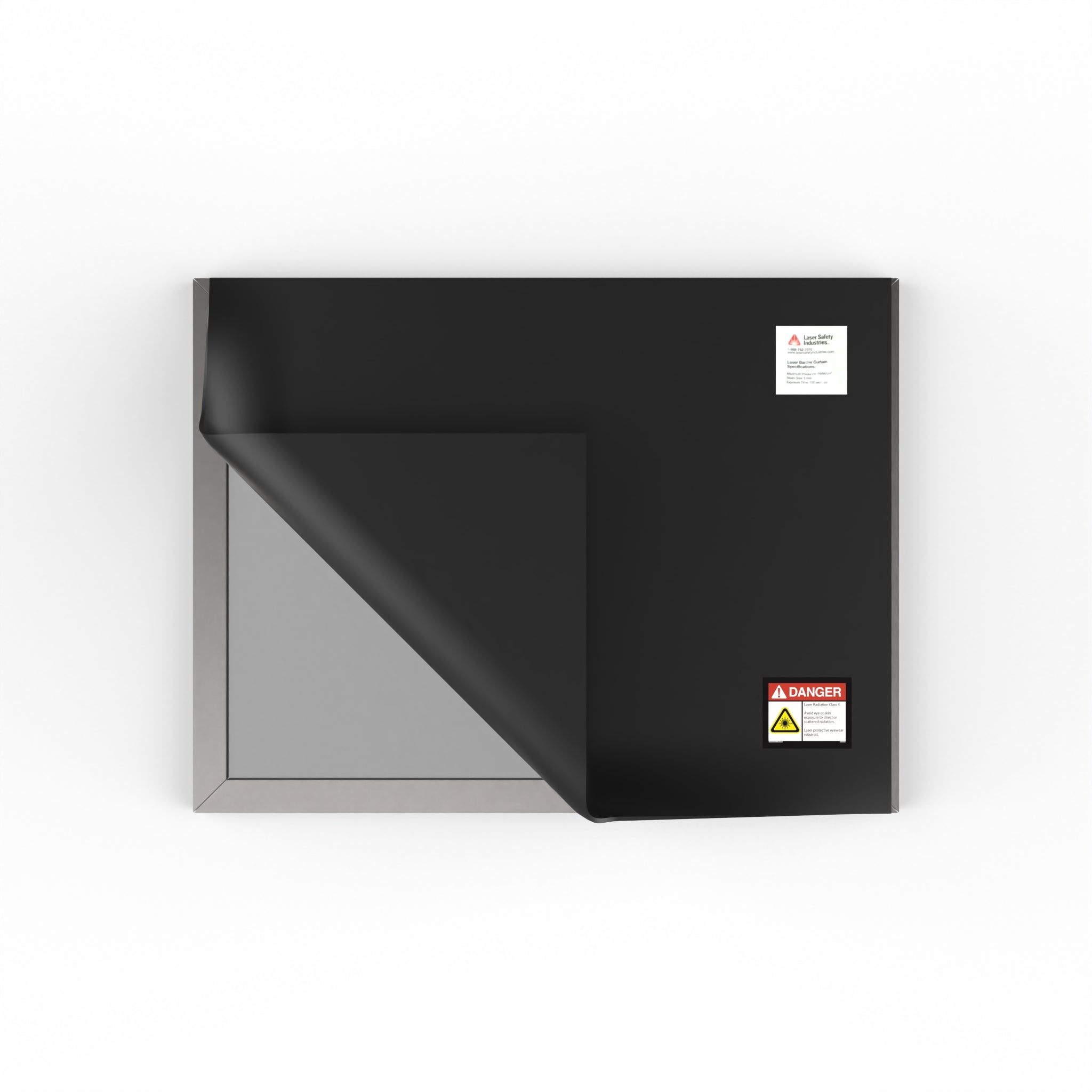

Description
Laser window covering material is designed to withstand 200W/Cm2 or 300W/Cm2 with a beam size of 5 mm for 100 seconds.
Versatile Attachment Options:
- Velcro Strips or Tabs: Secure and adjustable fit with Velcro strips or tabs. This method allows for easy installation and repositioning.
- Grommets: Allows you to place on hooks.
- Magnets: Allows you to place on a metal frame other then aluminum.
For items that are designed to be wall attached, it comes with adhesive hook velcro; to install simply peel off and stick.
All window coverings come with a label.
Laser barrier curtain material is designed to withstand 200W/Cm2 or 300W/Cm2 with a beam size of 5 mm for 100 seconds.
LSOs (Laser Safety Officer) need to consider working environments, viewing conditions and beam delivery systems when making assessments and determining the correct laser glasses , goggles, barriers, or windows to protect against potentially hazardous laser radiation. Do not operate lasers without correct protective equipment and training.
Images is not to scale. Contact us for more information about this laser safety window covering.
ANSI Z136.1, EN207
All our laser window coverings meet or exceed the United States industry standard ANSI Z136, the requirements for use with the appropriate laser systems.
All laser safety window coverings that we offer are manufactured at Laser Safety Industries. These laser safety barriers are made of material that meets or exceeds NFPA 701 standards and is made with ANSI FM/ material FM4950.
The laser safety barrier material used also conforms to and meets requirements for welding curtain standards specified in FM4950.
More about ANSI Z136.1 and EN207
