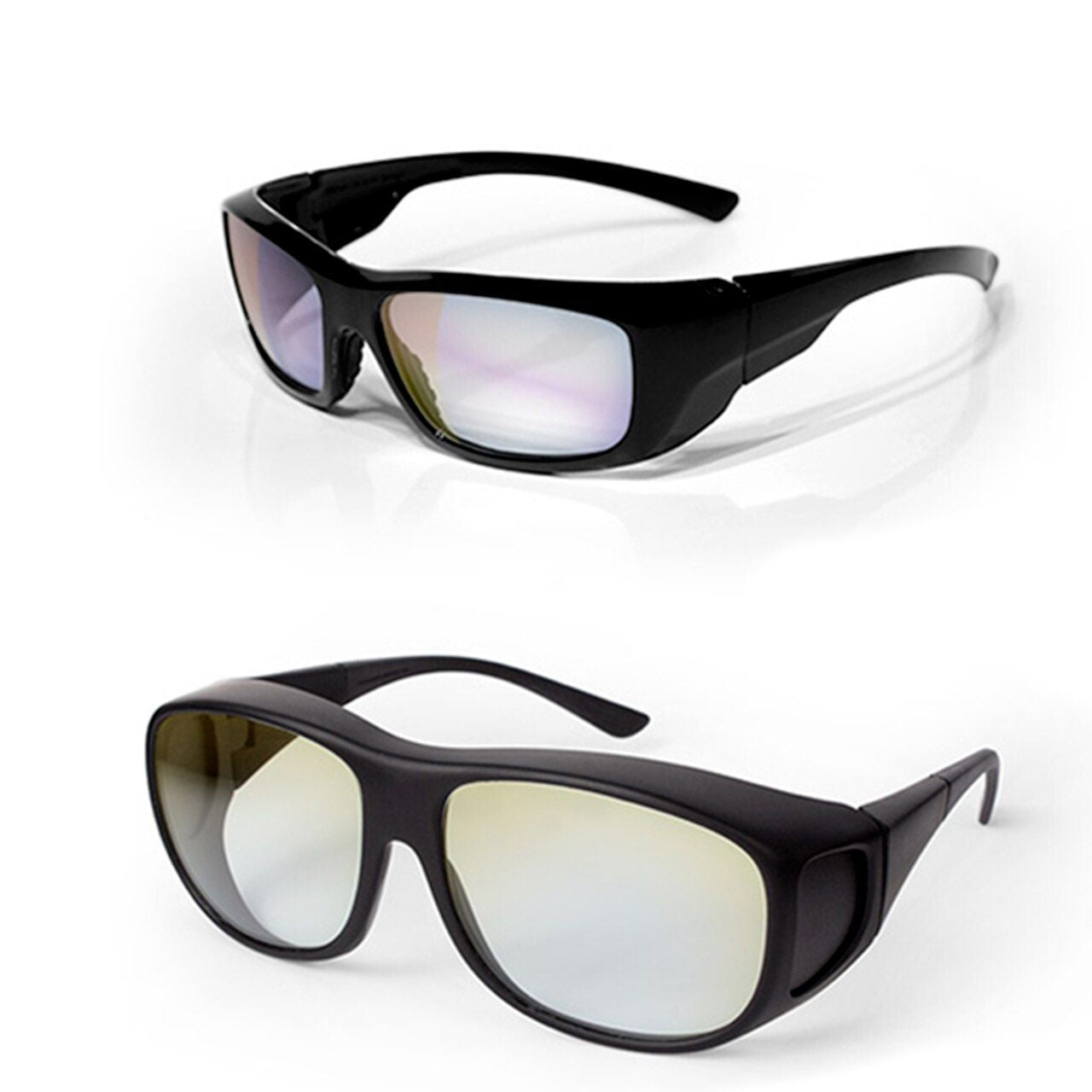

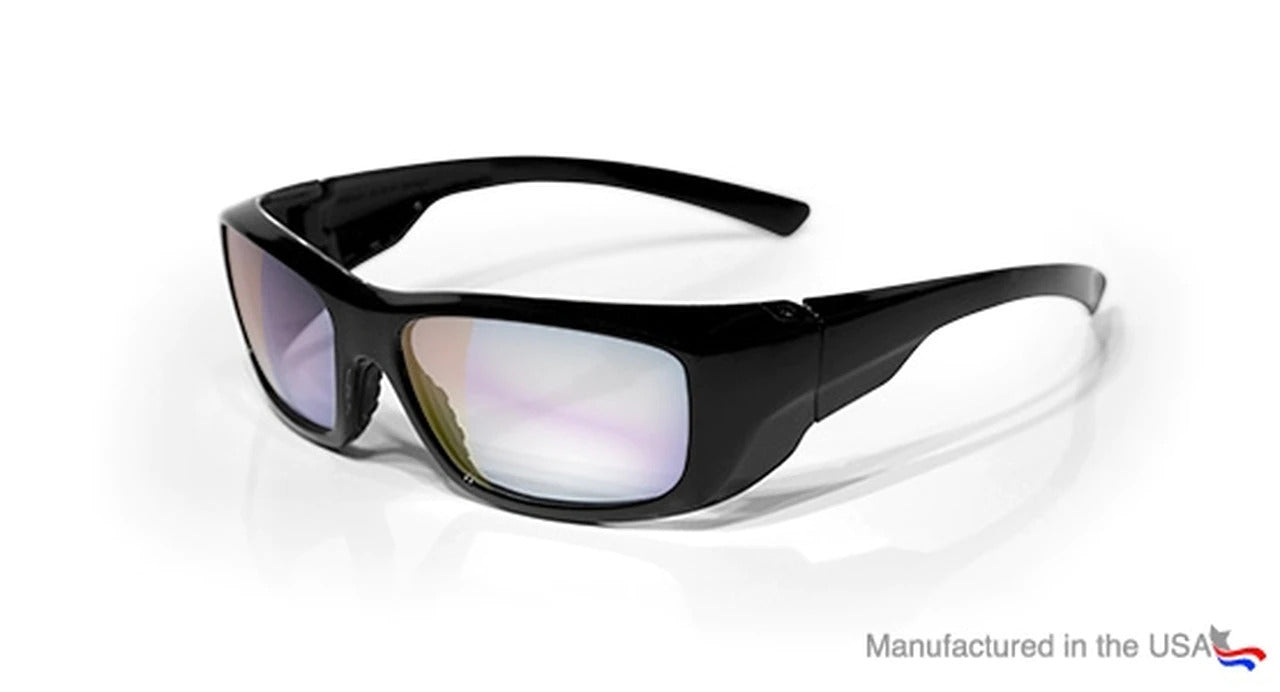

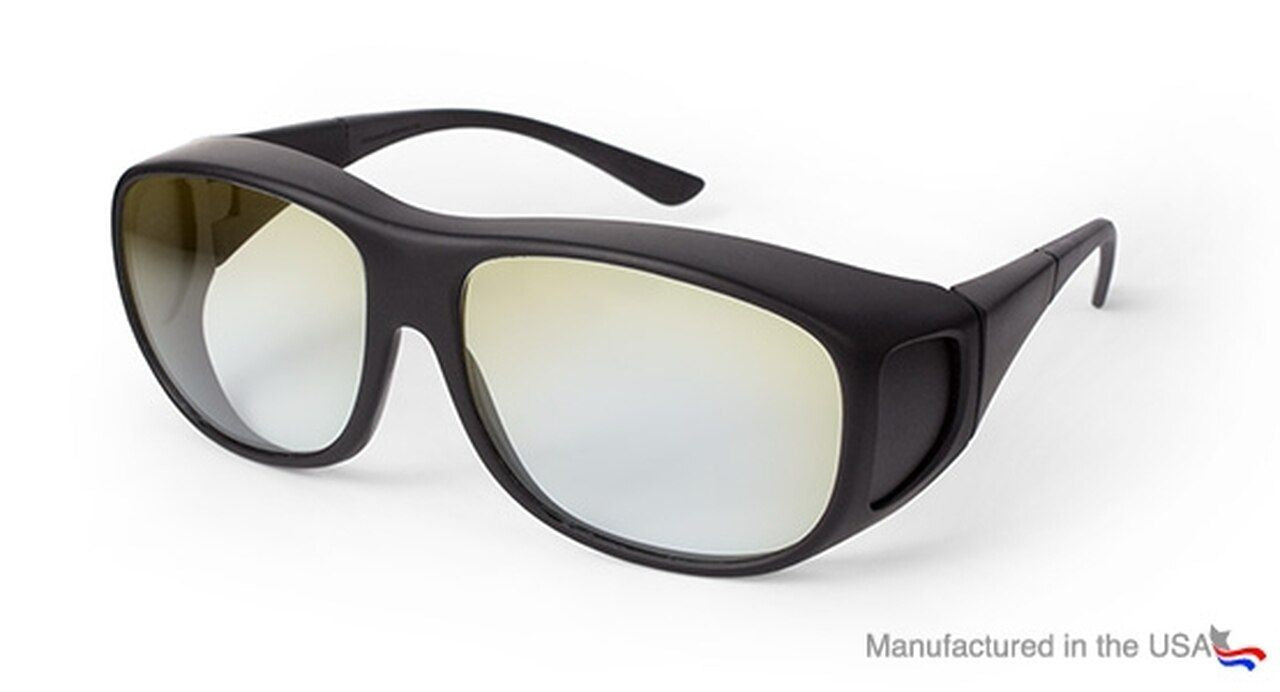

Laser Safety Glasses 340 Dielectric Coated Diode Nd:YAG (1064nm)

SKU: 100-38-340

Price:
Sale price$499.00

340 laser safety glasses were primarily developed for protection from laser wavelengths 950-10,600 nm: Diode, Fiber Optic Diodes, Nd:YAG, Er:YAG, Ho:YAG, CO2 (980 nm, 1,064 nm, 2,780 nm, 2,940 nm, 2100 nm, 10,600 nm). This laser eyewear may provide protection from other laser wavelengths not listed. Please see specifications for additional information about the frame and the filter, or contact us. Filter specifications are permanently engraved. These laser safety glasses meet and/or exceed US ANSI Z136 standards for use with lasers. All glasses and goggles come with a complimentary case, microfiber cleaning cloth, and head strap.

Technical Specifications

Optical Density

OD 5+ @ 950-1,000 nm
OD 13+ @ 1,064 nm
OD 7+ @ 1,000-1,600 nm
OD 5+ @ 1,600-2,400 nm
OD 4+ @ 2,400-2,900 nm
OD 5+ @ 2,900-10,600 nm

Visible Light Transmission

65%

Material

Dielectric Coated

Common Laser Applications

CO2,
Nd:YAG - 1064nm,
Eurbium YAG - 2780 nm, 2940 nm,
1319 nm,
1540 nm,
Holmium YAG - 2100 nm

General Region of Laser Protection

Infrared (IR)

LSOs (Laser Safety Officer) need to consider working environments, viewing conditions and beam delivery systems when making assessments and determining the correct laser glasses , goggles, barriers, or windows to protect against potentially hazardous laser radiation. Do not operate lasers without correct protective equipment and training.  All laser safety glasses and goggles are made for indirect viewing only.

ANSI Z136.1

 All our laser glasses meet or exceed the United Stated industry standard ANSI Z136.1, the requirements for use with the appropriate laser systems. For more information on ANSI, see here.

More about ANSI Z136.1 and EN207
